Set native resolution during LTI deployment

When you install Windows 7 the old fashioned way, the resolution of the desktop is automatically set to the native resolution of the screen. However during my LTI deployment I noticed that it was still set to 1024 x 768 which annoyed me to no end. After a quick look in the default MDT unattend.xml I found the solution.

If a resolution is set in the unattend.xml (<deploymentshare>\Control\100), Windows will force itself to use that resolution. If nothing is set in the unattend.xml Windows will set the native resolution of the screen. Therefore the solution is to remove the display sections in the unattend.xml. These lines should be removed:

<Display>

<ColorDepth>16</ColorDepth>

<HorizontalResolution>1024</HorizontalResolution>

<RefreshRate>60</RefreshRate>

<VerticalResolution>7

Filed under: Microsoft, WDS/MDT 2 Comments
17Feb/110

Application install errors during LTI deployment

I added a couple of applications to my newly setup LTI deployment that didn't install properly. After a search in the log files I found an entry in the ZTIApplications.log (C:\Windows\Temp\DeploymentLogs) that shed some light on the problem. Some of the applications encountered error 1632. Google soon provided me with the description of the error (link)

1632

ERROR_INSTALL_TEMP_UNWRITABLE

The Temp folder is either full or inaccessible. Verify that the Temp folder exists and that you can write to it.

As indicated the temp folder was somehow locked out. This was due to a software deployment GPO that triggered after the reboot. The software couldn't be installed which locked the temp folder. After disabling the faulty GPO the applications were deployed properly.

Filed under: Microsoft, WDS/MDT No Comments
11Feb/116

PXE-E55: ProxyDHCP service did not reply to request on port 4011

The error message can differ a bit as it is network card controlled. Unfortunately there is no single fix for this issue. There are a lot of causes for this issue. I will list solutions down here as I run into them.

Solution 1:

All approved and rejected devices are added to a database. If a device is rejected WDS will not respond to requests coming from this device. The best way to solve this is to clear the rejected and/or approved devices database. To do this log on to your WDS server and run the following command:

Wdsutil.exe /delete-autoadddevices /devicetype:rejecteddevices

Wdsutil.exe /delete-autoadddevices /devicetype:approveddevices

Filed under: WDS/MDT 6 Comments
11Feb/1110

LiteTouch has encountered an Environment Error (Boot into WinPE!)

After I disabled a couple of steps in the task sequence, I was confronted with this error that had me puzzled for a while. However it was not related to my changes. The deployment before the changes ended in errors and the clean-up didn't finish all the way afterwards. When you start a new deployment it checks if a deployment is already in process on that computer. The harddrive had a partition with the folders minint and _SMSTaskSequence on it.

There are two ways to fix this issue:

Option 1:

  • Start into PXE and when the error is presented press F8
  • In the console type: diskpart
  • Type: select disk 0
  • Type: clean

Option 2:

  • Start into PXE and when the error is presented press F8
  • In the console type: c:
  • Type: format c: /Q
Filed under: WDS/MDT 10 Comments
9Feb/110

Office 2010 deployment with language packs

Deploying desktops can take quite some time, however using Windows Deployment Services in combination with Microsoft Deployment Toolkit 2010 update 1 automates it all. In this article I will get down and dirty with deploying Office 2010 Pro Plus with language packs using MDT.

Start with copying the DVD/ISO to a separate folder. I choose to use the English version as the base, but you can use any language you want.

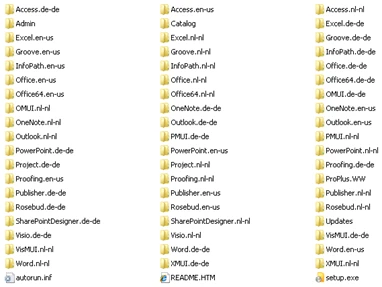

Copy the contents of the Office Language Pack 2010 <language> to the same folder. You will be presented with a couple of duplicate files and folders. You can accept the folders, but don't overwrite the current version of the files. You will end up with something like this.

Step 2 is to import the whole Office 2010 application into Deployment Workbench.

  1. Right click Applications in your deployment share and select New Application
  2. Select the option Application with source files
  3. Enter the Application Name, Version and Language
  4. Select the directory where you combined the installation source and the language packs
  5. Specify the name of the directory that should be created
  6. Enter setup.exe in the command line box
  7. Files are being copied to the Deployment Share

Step three is to edit the application settings and create an Office customization file with the Office Customization Tool.

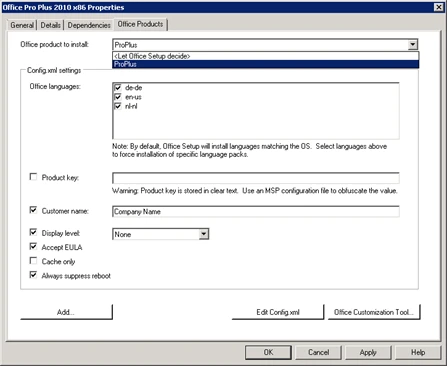

  1. Right click the Office Pro Plus 2010 x86 application and select Properties
  2. Click the Office Products tab
  3. Select ProPlus in Office product to install
  4. Check the languages you want to include in the install
  5. Fill out the Customer name field
  6. Select None in the Display level dropdown box
  7. Check Accept EULA

You can leave the Product key field empty because I'm using the KMS key. The MSP that we will create with the Office Customization Tool will include this. If you're using the MAK key you may insert it here, however do note that the product key is stored in clear text as indicated in the warning. I advise you to enter the MAK key in the Office Customization Tool where it will be obfuscated.

Click the Edit Config.xml button to confirm that the following lines are present in the generated file.

<AddLanguage Id="match" />

<AddLanguage Id="en-us" ShellTransform="Yes" />

<AddLanguage Id="de-de" />

<AddLanguage Id="nl-nl" />

The Id attribute in those XML lines is the language that will be added to the installation. Make sure that the right language has the attribute ShellTransform set to Yes.

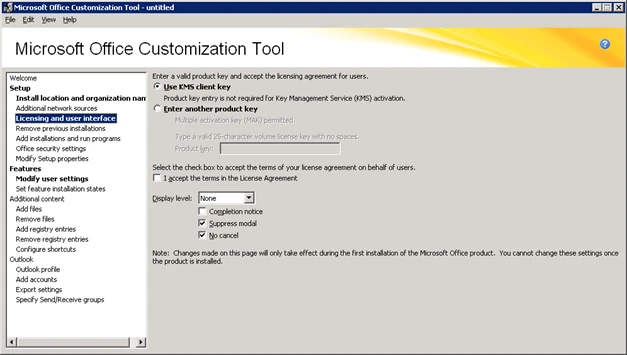

Now click the Office Customization Tool button. You will be presented with a dialog that tells you to save the MSP file in the location <deployment share>\Applications\Office Pro Plus 2010 x86\Updates when you're done. If you don't save the file in that location the MSP will not be used during the installation.

  1. Select the Microsoft Office Professional Plus 2010 (32-bit) product
  2. In the Default File Types dialog I recommend to select the Office Open XML formats option as this is most used and supports all the formatting options in the Office applications
  3. Select Licensing and user interface
  4. Check the I accept the terms in.. option
  5. Select Display level None and check No cancel if you want to remove the cancel button during installation
  6. Edit all other options that you want changed like: Organization name
  7. Click File > Save As and store the file in the previously mentioned location

Office Pro Plus 2010 is now available in the Task Sequence. Don't forget to add it to your task sequence.

8Feb/117

Removing offline files sync partnership

Removing a offline files sync partnership is not as straight forward as it should be. However there seems to be a way to remove them none the less.

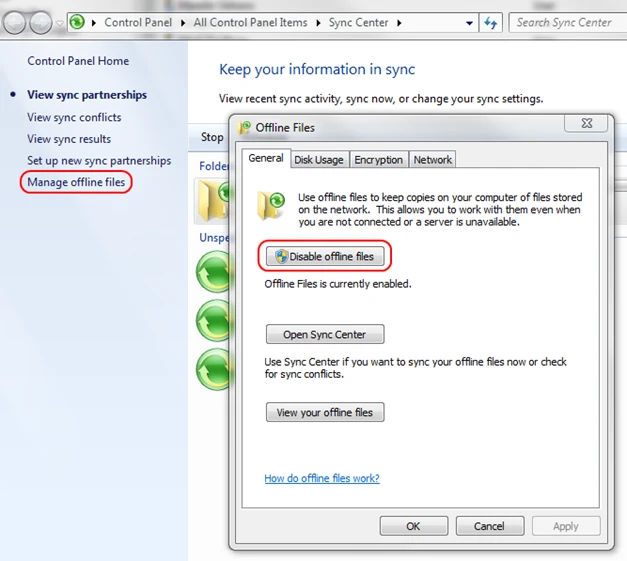

  • Disable offline files in the Sync Center

  • Reboot
  • Go to C:\Windows\CSC\v2.0.6\ and take ownership of the folder
    • right click the CSC folder, chick properties.
    • click security
    • advanced
    • owner
    • edit
    • select or add your username to the list
    • put a check mark in "Replace owner on ..."
    • OK
  • Delete the server folder that you want to remove from the partnership
  • Reboot
  • Restore permissions on the C:\Windows\CSC\v2.0.6\ folder
    • Go to the permission tab and make sure the checkbox -include "inheritable permissions from this object's parent"-
      is checked. Then reboot and verify the permissions are correct.

Offline files should now work again and the sync partnership should now be removed completely.

2Feb/112

Creating a file of a certain size

Sometimes you just need a file that takes up space. To test transfer speeds, file size issues, etc. The way to do this is to use fsutil.

fsutil file createnew <name.ext> <size in bytes>

You now have a file that is exactly the size that you need it to be.
