Not all problems are software based

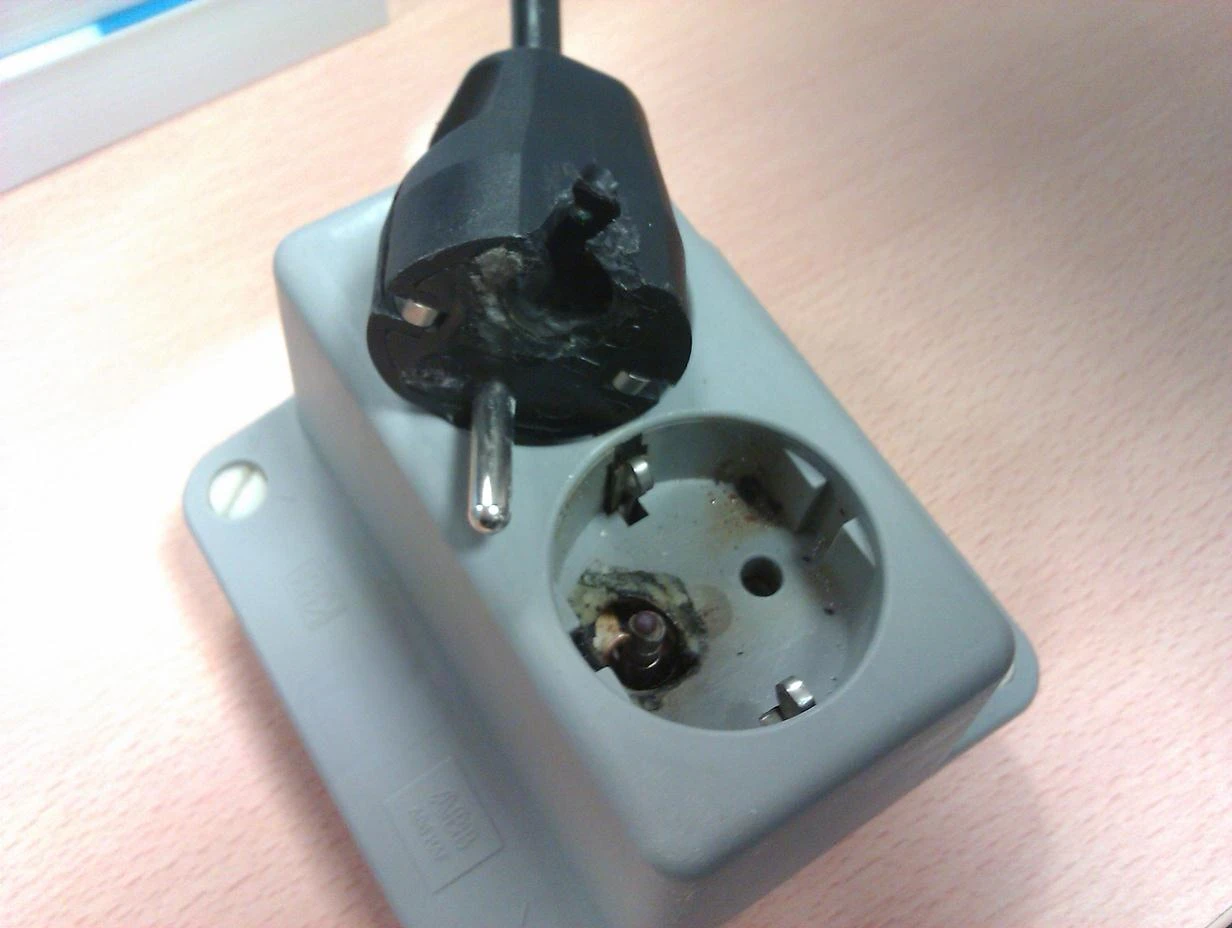

We recently had an outage of our internet. However this was not caused by software failure, but by hardware failure. The cable inside the plug wasn't connected properly to one of the plug's pins. As you can see, this was quite severe. Good thing it didn't develop into a fire…

Filed under: Other No Comments
25Oct/100

Error viewing roles or features

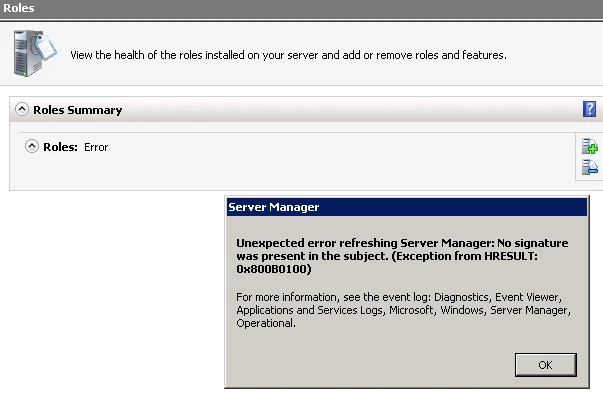

I was trying to install the resource manager to setup some quotas through the server manager, when I was confronted with the following screen.

After a couple of searches on Google I found that the solution could be found in the System Update Readiness Tool (Windows 2008 R2 x64 - http://www.microsoft.com/downloads/en/details.aspx?FamilyID=C4B0F52C-D0E4-4C18-AA4B-93A477456336). After I installed Windows6.1-KB947821-v7-x64.msu, SUR was ran automatically in the background and generated the file C:\Windows\Logs\CBS\CheckSUR.txt.

Checking System Update Readiness.

Binary Version 6.1.7600.20751

Package Version 9.0

2010-10-15 12:38

Checking Windows Servicing Packages

Checking Package Manifests and Catalogs

(f)    CBS MUM Corrupt    0x00000000    servicing\Packages\Package_for_KB2286198_RTM~31bf3856ad364e35~amd64~~6.1.1.1.mum        Expected file name Microsoft-Windows-Foundation-Package~31bf3856ad364e35~amd64~~6.1.7600.16385.mum does not match the actual file name

Checking Package Watchlist

Checking Component Watchlist

Checking Packages

Checking Component Store

Summary:

Seconds executed: 388

Found 1 errors

CBS MUM Corrupt Total count: 1

Unavailable repair files:

    servicing\packages\Package_for_KB2286198_RTM~31bf3856ad364e35~amd64~~6.1.1.1.mum

    servicing\packages\Package_for_KB2286198_RTM~31bf3856ad364e35~amd64~~6.1.1.1.cat

Follow the steps below to fix the problem further:

  • Download the update from the Microsoft site
  • Extract the files from the update (you might want to rename the file extension to .cab)
  • Extract the cab files within also
  • Find the files that were corrupted or missing in the package and copy them to a separate location

Locate the corrupted files or open the folder of the missing files.

  • Take ownership of the files and overwrite them with the extracted version
  • Give ownership back to SERVICE\TrustedInstaller or just SYSTEM

Afterwards you should run the System Update Readiness Tool again. It should complete without errors. If so, the Roles and Features should be ok again.
